Excavators
XE80U
Rated Power
73.2 hp
Operating Weight
20,944 lb.
Standard Bucket Capacity
0.46 yd3

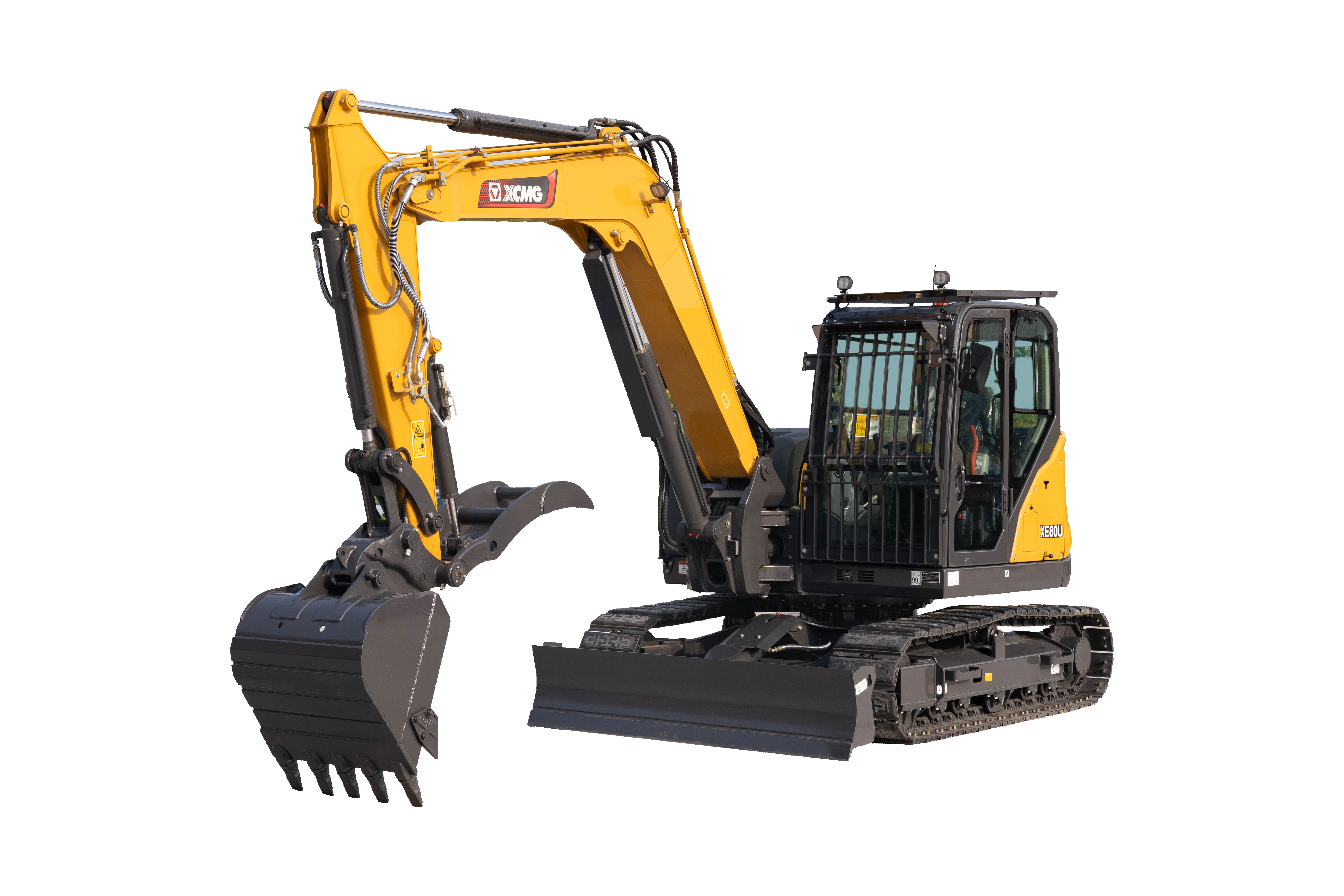

XE80U
The XE80U is designed to combine power and smoothness with its short-tail design. Its versatility is enhanced by two standard hydraulic circuits and precise oil flow control. The high digging and lifting performance along with smooth driving capabilities make the XE80U the ideal machine for demanding jobs. The Tier 4F engine with EGR, DOC, and DPF technology ensures fuel-efficient and smooth control, regardless of the load.
PARAMETERS
| Parameter | Unit of Measure | Measurement |
|---|---|---|
| Operating Weight | lbs | 20,944 |
| Bucket Capacity | yd3 | 0.46 |
| Engine Model | - | Kubota/V3307CRTE5 |
| Rate Power/Speed | HP | 73.2 |
| Maximum Torque/Speed | rpm | 1500 |
| Travel Speed | mph | 1.68-3.04 |
| Swing Speed | rpm | 12 |
| Displacement | in3 | 201.4 |
| Bucket Digging Force | lbf | 14,388 |
| Arm Digging Force | lbf | 9217 |
